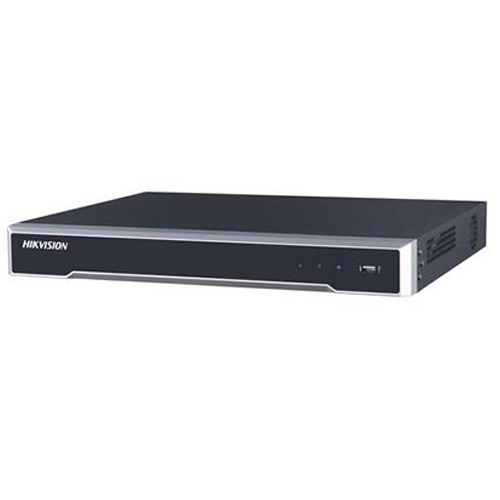

DS-7608/7616NI-Q2/8P(16P)
Network Video Recorder
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 16 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- HDMI and VGA independent outputs
- HDMI Video output at up to 4K (3840 × 2160) resolution
- 2 SATA interfaces connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- 1 self-adaptive 10/100/1000 Mbps network interface
- 8/16 independent PoE network interfaces are provided
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management
| Video / Ses Girişi |
| İki Yönlü ses girişi: |
|
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi: |
|
16-ch |
| IP Video girişi: |
|
Up to 8 MP resolution |
| Network |
| Incoming bandwidth: |
|
160Mbps |
| Outgoing bandwidth: |
|
80Mbps |
| Video/Audio Output |
| HDMI Output: |
|
1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. |
| Recording Resolution: |
|
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Ses Çıkışı: |
|
1-ch, BNC (Linear, 600Ω) |
| Senkronize Yeniden Oynatma: |
|
16-ch |
| VGA Çıkışı: |
|
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding |
| Decoding format: |
|
H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view / Playback: |
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Capability: |
|
1-ch @ 8 MP / 4-ch @ 1080p |
| Hard Disk |
| SATA: |
|
2 SATA interfaces |
| Capacity: |
|
Up to 6TB capacity for each disk |
| Capacity: |
|
Up to 6TB capacity for each HDD |
| External Interface |
| Ağ Arayüzü: |
|
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Arayüzü: |
|
2, USB2.0 |
| POE |
| Desteklenen Standartlar: |
|
AF and AT |
| Interface: |
|
24 independent 10/100 Mbps PoE Ethernet interfaces |
| General |
| Power: |
|
≤ 280W |
| Güç Kaynağı: |
|
100 to 240 VAC |
| Tüketim (hard disk ve POE olmadan): |
|
≤ 15W |
| Çalışma Sıcaklığı: |
|
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Çalışma Nem oranı: |
|
10 % ~ 90 % |
| Kasa: |
|
1U chassis |
| Boyutlar: |
|
385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Ağırlık (HDD hariç): |
|
≤ 2.6 kg (5.7 lb) |
|
