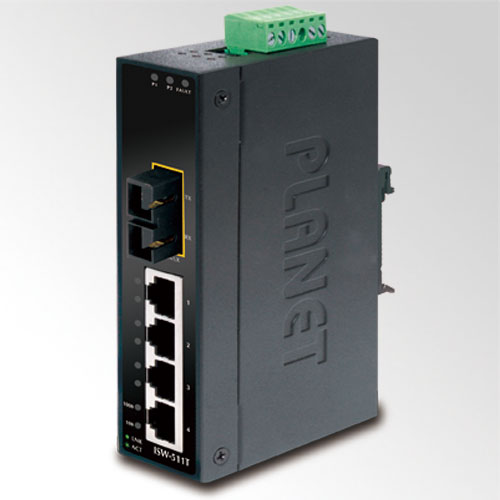

Industrial Switch for High Performance Data Collect and Forward



The ISW-511T and ISW-511TS15 are equipped with four 10/100Mbps ports offering auto MDI / MDIX feature and one 100Base-FX optic-fiber SC interface providing 1Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-511T / ISW-511TS15, with come in the slim type IP 30 metal shape, is ideal for most Heavy Industrial demanding environments.



Physical Port

• 4-Port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-511T series
• 1-Port 100Base-FX interface on ISW-511T for up to 2km (Multimode fiber 62.5/125µm, 50/125µm) transmission distance
• 1-Port 100Base-FX interface on ISW-511TS15 for up to 15km
• (Single-mode fiber 9/125µm) transmission distance Layer 2 Features
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
• Supports Auto-Negotiation and 10/100Mbps half / full duplex mode for each copper port
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets
• to optimize the network bandwidth
• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• Backplane (Switching Fabric): 1Gbps
• Integrated address look-up engine, supports 2K absolute MAC addresses
• 1Mbit on-chip frame buffer
• Automatic address learning and address aging
• CSMA/CD Protocol

Industrial Case / Installation

• IP-30 Metal case / Protection
• DIN Rail and Wall Mount Design
• 12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal block for master and slave power
• Supports EFT protection 6KV DC for power line
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 Degree C wide operating temperature



Hardware Specifications
Copper	Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Optical	Port 1 x 100Base-FX Cable ISW-511T: 50/125µm / 62.5/125µm fiber  ISW-511TS15: 9/125µm fiber  Mode ISW-511T: Multi-mode ISW-511TS15: Single-mode Distance ISW-511T: 2km ISW-511TS15: 15km Frequency ISW-511T: 1310nm ISW-511TS15: 1310nm Launch Power  ISW-511T: Max. -14dBm, Min. -20dBm ISW-511TS15: Max. 0dBm, Min. -20dBm Receive Sensitivity ISW-511T: -32dBm ISW-511TS15: -32dBm Max. Input Power   ISW-511T: -14dBm ISW-511TS15: 0dBm
Dimensions (W x D x H)	135 x 97 x 32 mm
Weight	436g
Power Requirements	12~48V DC  Redundant power with polarity reverse protection function
Power Consumption / Dissipation	13.7 watts / 46 BTU
Installation	DIN rail kit and wall mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Buffer	1Mbit
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1Gbps
Throughput (Packet Per Second)	0.74Mpps @ 64Bytes
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity Operating	Operating: 5~90%  Storage: 5~90% (Non-condensing)
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock)  IEC60068-2-6 (Vibration)



Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch) 4-Port 10/100Base-TX 1-Port 100Base-FX Single-mode SC 15 km IP30, -40~75 Derece C
