• Hardware –High quality 19" Rack-mountable chassis installation –Supplies the converters modules to be plugged and played –Supports up to fifteen hot-swappable media converters –Two fans built-in for hardware cooling –Reduces the effort of converter maintenance and management, diagnose the status at one time • Power System –Bay power isolation to ensure each bay is electrically isolated from each other –Power protection: protection from over voltage, over current and short circuit • Compatibility –Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x –Supports VDSL2 Media Converter: VC-201A / VC-231 –Supports Serial over Ethernet Converter: ICS-10x series
| Hardware Specifications |
| Dimensions (W x D x H) |
438 x 200 x 103 mm, 2.4U high |
| Slot |
15 open slots (Slot Dimensions (W x D x H) 27 x 95 x 71 mm,) |
| LED |
Power 1, Power2, Fan1, Fan2 |
| Fan |
2 x Fan |
| Weight |
4.3kg |
| Power Requirements |
100~240V AC, 3.3A, 50-60Hz |
| Power Output |
Each slot 5V DC 1A |
| Power Consumption |
10 watts / 34.1BTU (System only) 80 watts / 272BTU (Full loading) |
| Operating Environment |
0~50 degrees C, 5%~90%RH |
| Storage Environment |
-20~70 degrees C, 5%~90%RH |
| Emission |
FCC Class A, CE mark |

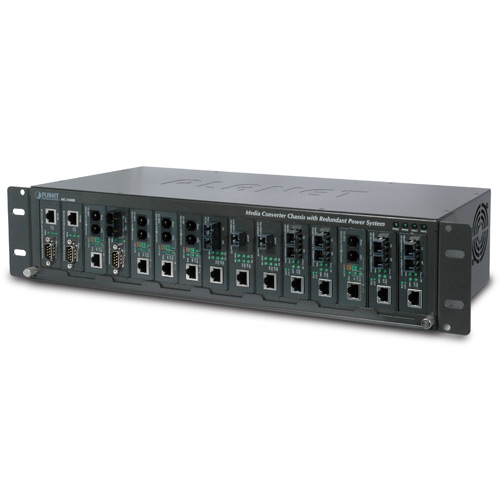

19-inch 15-Slot Media Converter Chassis (AC Power)
| Diğer Özellikler |
|---|
| Stok Kodu | 8205 |
| Marka | Planet |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. |
| Garanti (Yıl) | 2 |
4711213687761
