Physical Port

• 8-Port 10/100/1000BASE-T Gigabit RJ-45 copper with 4-Port IEEE 802.3at / af PoE Injector (Port-1 to Port-4)

Power over Ethernet

• Complies with IEEE 802.3at High Power over Ethernet end-span PSE
• Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
• Up to 4 ports of IEEE 802.3af / 802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters

Layer 2 Features

• High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9K Jumbo frame supports in 1000Mbps duplex mode
• Automatic address learning and address aging

Industrial Case / Installation

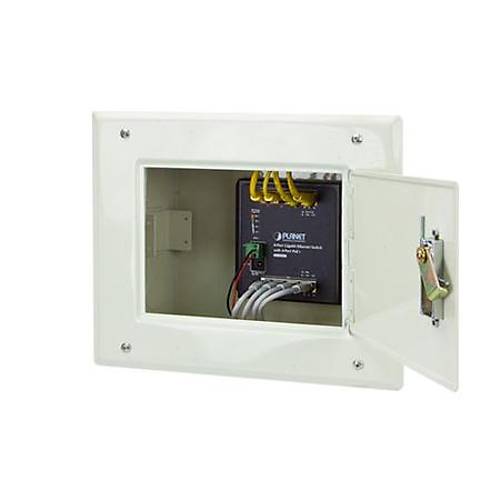

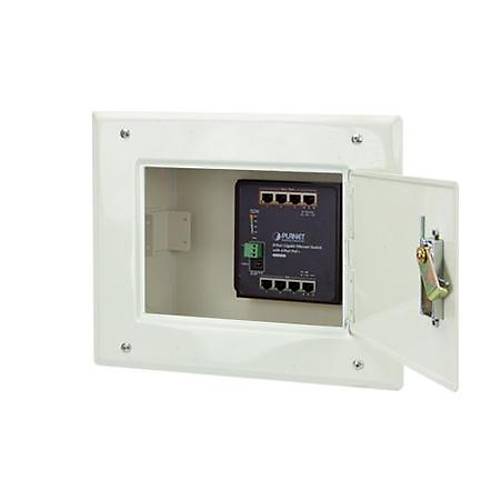

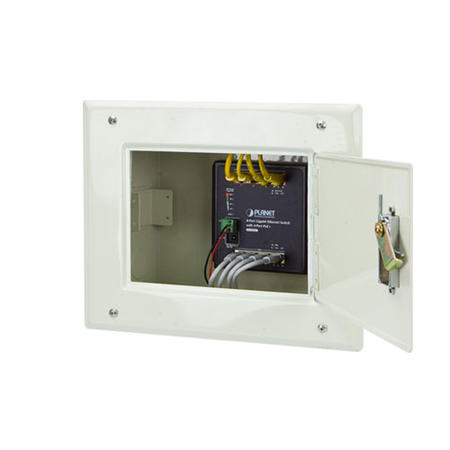

• Compact size, wall-mounted, magnetic wall mount and DIN-rail design
• IP30 metal chassis
• Supports -10 to 60 degrees C operating temperature
• Supports EFT 6000VDC protection for power line
• Supports ESD 6000VDC Ethernet protection
• LED indicators for real-time PoE usage
• 48V~56V DC input range for booting with polarity reverse protect function
•

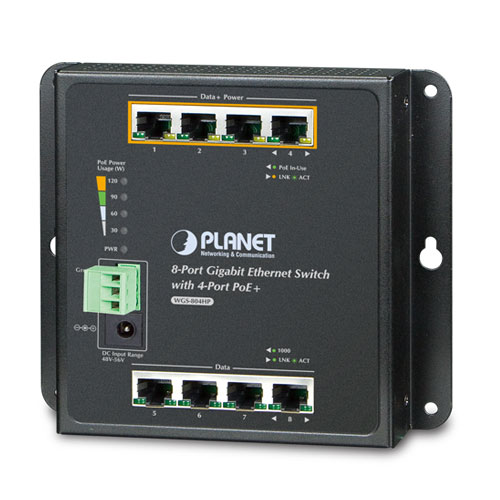

  Duvar Tip Yönetilemeyen PoE+ Switch
  8-Port 10/100/1000Base-T (Port-1 ile Port-4 arası IEEE 802.3at/af PoE+ Injector) (Port başına 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)
  IP30, -10~60 Derece C
