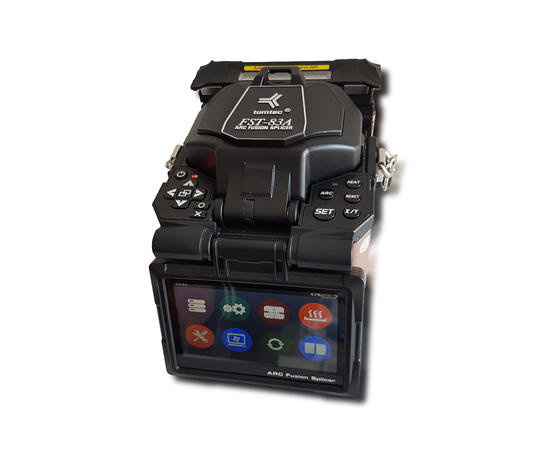

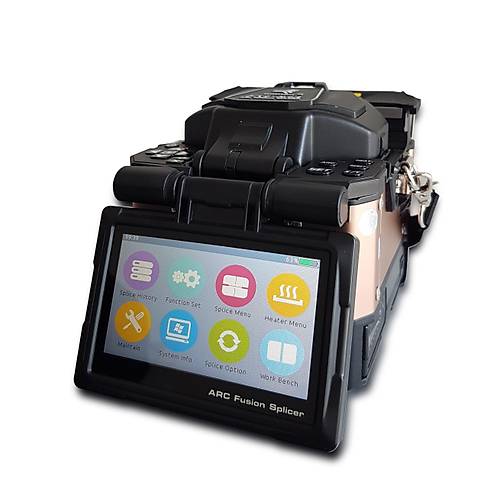

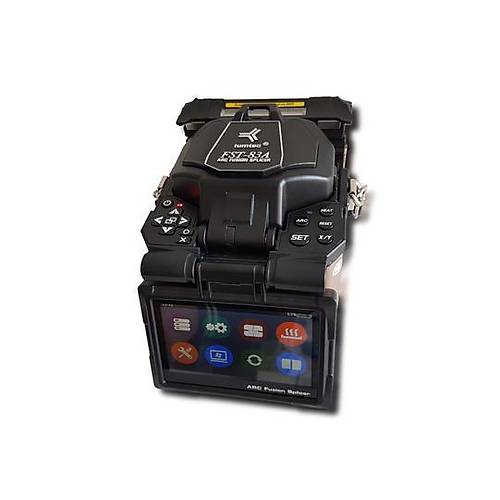

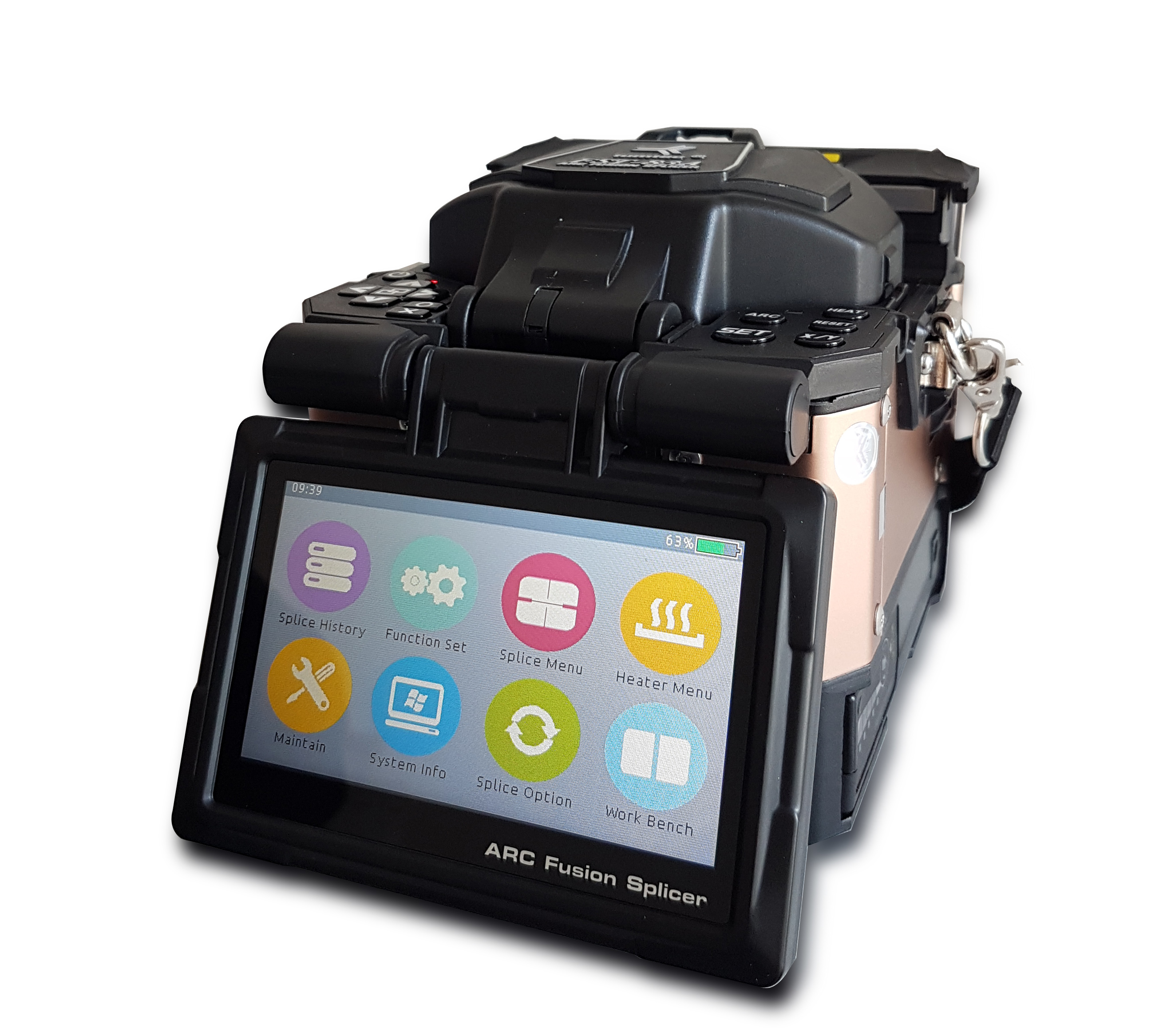

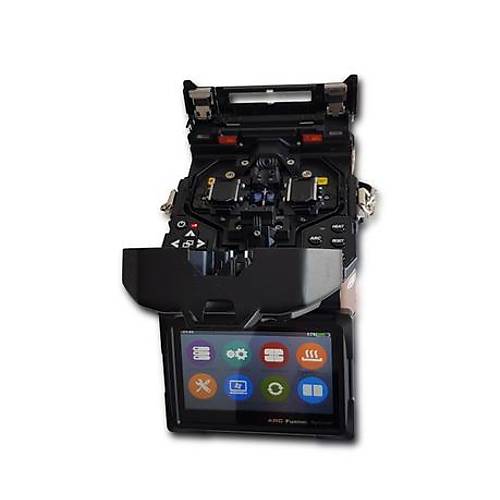

Tumtec Tt-Fst-83A Fiber Optic Fusion Splicer (Fst-83A)

Fiyat:
89.896,16 TL
Havale / EFT:
88.547,72 TL
9.970,98 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

ore to Core
• 3S Turn On Time
• 6S Splicing Time
• 5” Color LCD Touch Screen
• 5200mAh Battery Capacity
• 500X Magnification



Model FST-83A
Dimension 140W x 165L x 145H mm (including rubber bumper) 130W x 165L x 135H mm (excluding rubber bumper)
Weight 2.0KG (including rubber bumper) 1.7KG (excluding rubber bumper) 0.38KG (battery)
Number of Fiber Single
Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable 0.25-3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm)
Cleaved Length Diameter: 0.125-1 mm / Cleave Length: 8-16 mm
Cladding Diameter 80-150 pm
Splicing Mode Multiple splicing modes
Typical Splice Loss 0.04db
Return Loss >> 60 dB
Lighting 1 Powerful White LED and illuminated Keypads
Splicing Time 6-8 seconds
Estimated Splice Loss Available
Protection Sleeve Length 20-60 mm
Heating Mode Multi heating modes
Heating Time typical heating time: 30 sec
Results Storage The last 5000 results
Tension Test 1.5-2.0N
Operating Condition Operating Altitude: 0-5000m above sea level, 0.95% relative humidity, - 10-50°C, Max Wind 15m/s
Storage Condition 0-95% relative humidity, -40-80°C
Display 90° bi-directional view, 5.0" 800*480 Color High Resolution Display with touch screen
Fiber View & Magnification X, Y, XY, X/Y : 500X Magnification
Power Supply AC Input 100-240V, DC Input 12-15V
No of Splice / Heating with Battery 5200mAh Battery Capacity, Typical above 280 times (Splice+Heat)
Operating Methods Button / Touch screen
Automatic Calibration Automatic arc calibration by air pressure and temperature
Electrode Life 5000 arcs, can be extended by using an electrode grinder
Terminal USB2.0 / Phone Jack
Diğer Özellikler
Stok Kodu20870
MarkaTumtec
Stok DurumuVar
Garanti (Yıl)2
